Aksa power generation system, providing optimum performance, and reliability, for stationary standby, prime power, and continuous duty applications.
All generator sets are factory build, and production tested.
- Pars Jeneratör
- Perkins Generator AP 220

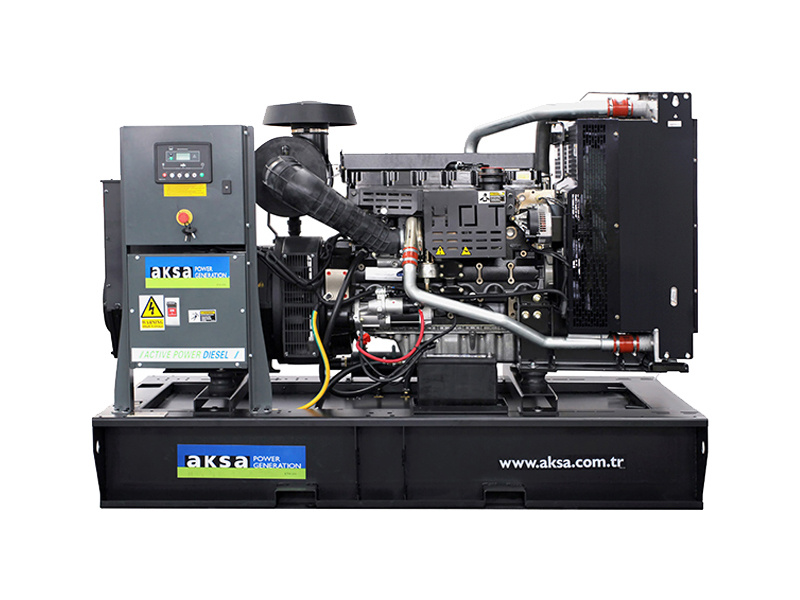

Perkins Generator AP 220
- Perkins Generator
- General Characteristics
- Model Name: AP 220
- Frequency ( Hz ): 50
- Fuel Type: Diesel
- Engine Made and Model: PERKINS - 1106A-70TAG4
- Alternator Made and Model: Mecc Alte - ECO 38-2S/4 A
- Control Panel Model: DSE 7320
- Canopy: AK 49 TRP
- 3 Phase 50 Hz PF 0.8
- STANDBY RATING ( ESP ):
- Applicable for supplying power to varying electrical load for the duration of power interruption of a reliable utility source.
- ESP is in accordance with ISO 8528-1.
- Overload is not allowed.
- PRIME RATING ( PRP ):
- Applicable for supplying power to varying electrical load for unlimited hours.
- PRP is in accordance with ISO 8528-1.
- 10 % overload capability is available for a period of 1 hour within 12-hour perod of operation.
- VOLTAGE
- Voltage: 400/231
- STANDBY RATING ( ESP )
- kVA: 220
- kW: 176.0
- PRIME RATING ( PRP )
- kVA: 200
- kW: 160.0
- Standby Amper
- Standby Amper: 317.55
- ENGINE SPECIFICATIONS
- Engine: PERKINS
- Engine Model: 1106A-70TAG4
- NO. OF CYLINDERS AND BUILD: 6 cylinders - in line
- BORE AND STROKE mm: 105 X 135
- TOTAL DISPLACEMENT L: 7.01
- Aspiration: Turbo Charged and Charge Air Cooled
- COMPRESSION RATIO: 16.0:1
- RATED SPEED ( RPM ) d/dk: 1500
- OIL CAPACITY L: 18
- Standby Power (kW/HP ): 196.3/263,13
- Prime Power ( kW/HP ): 178.9/239,81
- Block Heater QTY: 1
- Block Heater Power ( Watt ): 1500
- Fuel Type: Diesel
- Injection Type and System: Direct
- Type of Fuel Pump: Delphi DP210G Rotary Type
- Governor System: Electronic
- Operating Voltage ( Vdc ): 12 Vdc
- Battery and Capacity ( Qty / Ah ): 1x85
- Charge Alternator ( A ): 65
- Cooling Method: Water Cooled
- Coolant Capacity ( engine only / with radiator ) ( lt ): /21
- Air Filter: Dry Type
- Fuel Cons. Prime With %100 Load ( lt / hr ): 45.8
- Fuel Cons. Prime With %75 Load ( lt / hr ): 34.7
- Fuel Cons. Prime With %50 Load ( lt / hr ): 23.1
- ALTERNATOR SPECIFICATIONS
- Manufacturer: Mecc Alte
- Alternator Made and Model: ECO 38-2S/4 A
- Frequency ( Hz ): 50
- Power ( kVA ): 200
- DESIGN: Brushless
- VOLTAGE: 400
- Phase: 3
- A.V.R.: DSR
- Voltage Regulation ( + / - ): 1
- Insulation System: H
- Protection: IP23
- Rated Power Factor: 0.8
- WEIGHT COMP GENERATOR ( Kg ): 560
- COOLING AIR ( m³ / min ): 32
- Open Type
- LENGTH ( mm ): 2316
- WIDTH ( mm ): 1080
- HEIGHT ( mm ): 1693
- TANK CAPACITY ( lt ) ( Lt ): 340
- CANOPY
- CANOPY: AK 49 TRP
- DRY WEIGHT ( kg ) ( kg ): 2220
- LENGTH ( mm ): 3402
- WIDTH ( mm ): 1147
- HEIGHT ( mm ): 2008
- TANK CAPACITY ( lt ) ( Lt ): 340
- STANDARD SPECIFICATIONS
- STANDARD SPECIFICATIONS:
- Water cooled, Diesel engine
- Radiator with mechanical fan
- Protective grille for rotating and hot parts
- Electric starter and charge alternator
- Starting battery (with lead acid) including rack and cables
- Engine coolant heater
- Base frame design incorporates an integral fuel tank and anti-vibration isolators
- Flexible fuel connection hoses
- Single bearing, class H alternator
- Industrial exhaust silencer and steel bellows supplied separately(for open sets)
- Static battery charger
- Manual for application and installation
- ENGINE:
- Fuel-Water Seperator Filter
- Low water level alarm
- Oil heater
- ALTERNATOR:
- Anti-Condensation Heater
- Over sized alternator
- Main line circuit breaker
- CONTROL SYSTEM:
- Remote annunciator panel
- Remote relay output
- Alarm output relays
- Remote communication with modem
- Earth fault, single set
- Charge Ammeter
- TRANSFER SWITCH:
- Three or four pole contactor
- Three or four pole motor operated circuit breaker
- OTHER ACCESSORIES:
- Main Fuel Tank
- Automatic or manual fuel filling system
- Manual oil drain pump
- Residential silencer
- Enclosure: weater protective or sound attenuated
- Duct adapter ( on radiator)
- Inlet and outlet motorised louvers
- Inlet and outlet acoustic baffles
- Trailer
- Tool kit for maintenance
- Supplied with oil and coolant - 30 °C
- Battery isolating switch
