Aksa power generation system, providing optimum performance, and reliability, for stationary standby, prime power, and continuous duty applications.
All generator sets are factory build, and production tested.
- Pars Jeneratör
- Volvo Generator AVP 350

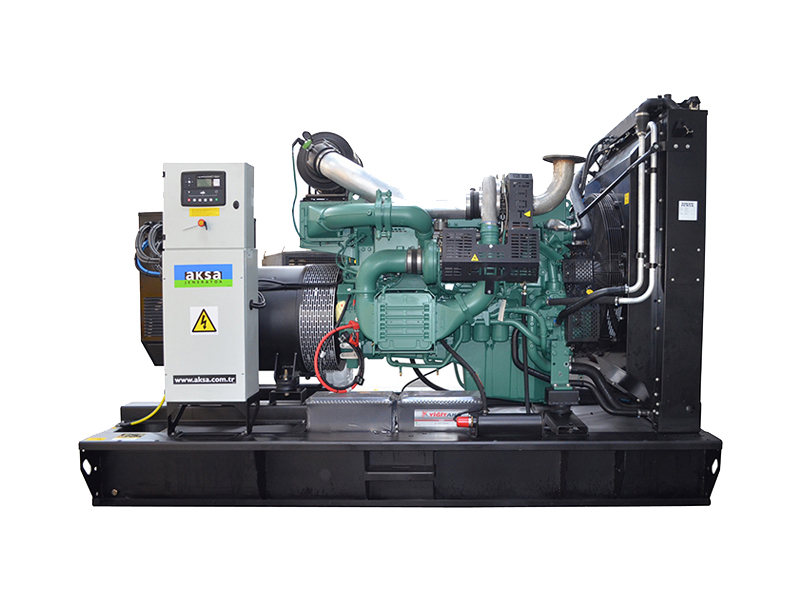

Volvo Generator AVP 350
- Volvo Generator
- General Characteristics
- Model Name: AVP 350
- Frequency ( Hz ): 50
- Fuel Type: Diesel
- Engine Made and Model: VOLVO - TAD1341GE
- Alternator Made and Model: Mecc Alte - ECO 38-3L/4 A
- Control Panel Model: DSE 7320
- Canopy: MS 70
- 3 Phase 50 Hz PF 0.8
- STANDBY RATING ( ESP ):
- Applicable for supplying power to varying electrical load for the duration of power interruption of a reliable utility source.
- ESP is in accordance with ISO 8528-1.
- Overload is not allowed.
- PRIME RATING ( PRP ):
- Applicable for supplying power to varying electrical load for unlimited hours.
- PRP is in accordance with ISO 8528-1.
- 10 % overload capability is available for a period of 1 hour within 12-hour perod of operation.
- VOLTAGE
- Voltage: 400/231
- STANDBY RATING ( ESP )
- kVA: 350
- kW: 280.0
- PRIME RATING ( PRP )
- kVA: 320
- kW: 256.00
- Standby Amper
- Standby Amper: 505.20
- ENGINE SPECIFICATIONS
- Engine: VOLVO
- Engine Model: TAD1341GE
- NO. OF CYLINDERS AND BUILD: 6 cylinders - in line
- BORE AND STROKE mm: 131 X 158
- TOTAL DISPLACEMENT L: 12.78
- Aspiration: Turbo Charged and AfterCooled
- COMPRESSION RATIO: 18.1:1
- RATED SPEED ( RPM ) d/dk: 1500
- OIL CAPACITY L: 36
- Standby Power ( kW/HP ): 308/419
- Prime Power ( kW/HP ): 281/382
- Block Heater QTY: 1
- Block Heater Power ( Watt ): 3000
- Fuel Type: Diesel
- Injection Type and System: Direct
- Type of Fuel Pump: Delphi E3
- Governor System: ECM
- Operating Voltage (Vdc): 24 Vdc
- Battery and Capacity ( Qty / Ah ): 2x120
- Charge Alternator ( A ): 80
- Cooling Method: Water Cooled
- Cooling Fan Air Flow ( m3 / min ): 330
- Coolant Capacity ( engine only / with radiator ) ( lt ): 20/44
- Air Filter: Dry Type
- Fuel Cons. Prime With %100 Load ( lt / hr ): 63.1
- Fuel Cons. Prime With %75 Load ( lt / hr ): 48.3
- Fuel Cons. Prime With %50 Load ( lt / hr ): 33.4
- ALTERNATOR SPECIFICATIONS
- Manufacturer: Mecc Alte
- Alternator Made and Model: ECO 38-3L/4 A
- Frequency ( Hz ): 50
- Power ( kVA ): 350
- DESIGN: 4 Pole, Brushless
- VOLTAGE: 400
- Phase: 3
- A.V.R.: DSR
- Voltage Regulation ( + / - ): 1
- Insulation System: H
- Protection: IP23
- Rated Power Factor: 0.8
- WEIGHT COMP. GENERATOR ( Kg ): 905
- COOLING AIR ( m³ / min ): 32
- Open Type
- DRY WEIGHT ( kg ) ( kg ): 2940
- LENGTH ( mm ): 2900
- WIDTH ( mm ): 1550
- HEIGHT ( mm ): 1923
- TANK CAPACITY ( lt. ) ( Lt. ): 700
- CANOPY
- CANOPY: MS 70
- DRY WEIGHT ( kg ) ( kg ): 3970
- LENGTH ( mm ): 4460
- WIDTH ( mm ): 1606
- HEIGHT ( mm ): 2547
- TANK CAPACITY ( lt ) ( Lt ): 700
- STANDARD SPECIFICATIONS
- STANDARD SPECIFICATIONS:
- Water cooled, Diesel engine
- Radiator with mechanical fan
- Protective grille for rotating and hot parts
- Electric starter and charge alternator
- Starting battery (with lead acid) including rack and cables
- Engine coolant heater
- Base frame design incorporates an integral fuel tank and anti-vibration isolators
- Flexible fuel connection hoses
- Single bearing, class H alternator
- Industrial exhaust silencer and steel bellows supplied separately(for open sets)
- Static battery charger
- Manual for application and installation
- Generators Sets’ voltage and frequency regulation comply with ISO 8528-5
- Generators Sets’ can take 100% load at one step according to NFPA110
- OPTIONAL EQUIPMENTS
- ENGINE:
- Fuel-Water Seperator Filter
- Oil heater
- ALTERNATOR:
- Anti-Condensation Heater
- Over sized alternator
- PMG excitation + AVR
- Main line circuit breaker
- CONTROL SYSTEM:
- Automatic synchronising and power control system ( multi gen-set Parallel )
- Paralel system with mains.
- Transition synchronization with mains
- Remote relay output
- Alarm output relays
- Remote communication with modem
- Earth fault, single set
- Charge Ammeter
- TRANSFER SWITCH:
- Three or four pole contactor
- Three or four pole motor operated circuit breaker
- OTHER ACCESSORIES:
- Main Fuel Tank
- Automatic or manual fuel filling system
- Electrical oil drain pump
- Low and high fuel level alarm
- Residential silencer
- Enclosure: weater protective or sound attenuated
- Duct adapter ( on radiator)
- Inlet and outlet motorised louvers
- Inlet and outlet acoustic baffles
- Tool kit for maintenance
- 1500/3000 hours maintenance kit
- Supplied with oil and coolant - 30 °C
