Doosan Generator AD 275
- Doosan Generator
- General Characteristics
- Model Name: AD 275
- Frequency ( Hz ): 50
- Fuel Type: Diesel
- Engine Made and Model: DOOSAN - P126TI
- Alternator Made and Model: Aksa - AK 4200
- Control Panel Model: DSE 7320
- Canopy: MS 60
- 3 Phase 50 Hz PF 0.8
- STANDBY RATING ( ESP ):
- Applicable for supplying power to varying electrical load for the duration of power interruption of a reliable utility source.
- ESP is in accordance with ISO 8528-1.
- Overload is not allowed.
- PRIME RATING ( PRP ):
- Applicable for supplying power to varying electrical load for unlimited hours.
- PRP is in accordance with ISO 8528-1.
- 10 % overload capability is available for a period of 1 hour within 12-hour perod of operation.
- VOLTAGE
- Voltage: 400/231
- STANDBY RATING ( ESP )
- kVA: 275
- kW: 220.0
- PRIME RATING ( PRP )
- kVA: 250
- kW: 200.0
- Standby Amper
- Standby Amper: 396.94
- ENGINE SPECIFICATIONS
- Engine: DOOSAN
- Engine Model: P126TI
- NO. OF CYLINDERS AND BUILD: 6 cylinders - in line
- BORE AND STROKE mm: 123 X 155
- TOTAL DISPLACEMENT L: 11.051
- Aspiration: Turbo Charged and Intercooled (Air to Air)
- COMPRESSION RATIO: 17.1:1
- RATED SPEED ( RPM ) d/dk: 1500
- OIL CAPACITY L: 23
- Standby Power ( kW/HP ): 272/370
- Prime Power ( kW/HP ): 241/328
- Block Heater QTY: 1
- Block Heater Power ( Watt ): 3000
- Fuel Type: Diesel
- Type of Fuel Pump: Zexel P inline
- Governor System: Electronic
- Operating Voltage ( Vdc ): 24 Vdc
- Battery and Capacity ( Qty / Ah ): 2x85
- Charge Alternator ( A ): 45
- Cooling Method: Water Cooled
- Cooling Fan Air Flow ( m3 / min ): 295
- Coolant Capacity ( engine only / with radiator ) ( lt ): 19/51
- Air Filter: Dry Type
- Fuel Cons Prime With %100 Load ( lt / hr ): 58.1
- Fuel Cons Prime With %75 Load ( lt / hr ): 43.6
- Fuel Cons Prime With %50 Load ( lt / hr ): 30
- ALTERNATOR SPECIFICATIONS
- Manufacturer: Aksa
- Alternator Made and Model: AK 4200
- Frequency ( Hz ): 50
- Power (kVA): 250
- DESIGN: Brushless
- VOLTAGE: 400
- Phase: 3
- A.V.R.: SX440
- Voltage Regulation ( + / - ): 1
- Insulation System: H
- Protection: IP22
- Rated Power Factor: 0.8
- WEIGHT COMP. GENERATOR ( Kg ): 727
- COOLING AIR ( m³ / min ): 34.8

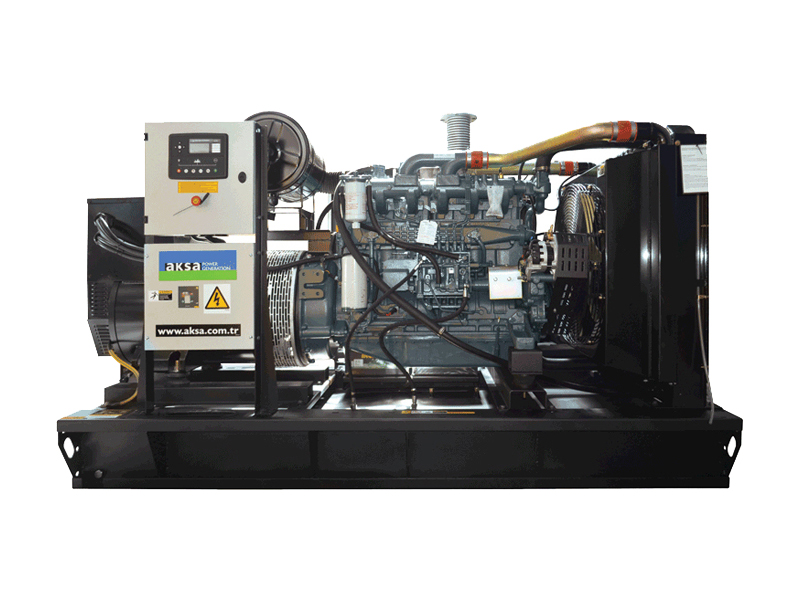

- Open Type
- DRY WEIGHT ( kg ) ( kg ): 2335
- LENGTH ( mm ): 2881
- WIDTH ( mm ): 1300
- HEIGHT ( mm ): 1785
- TANK CAPACITY ( lt ) ( Lt ): 470

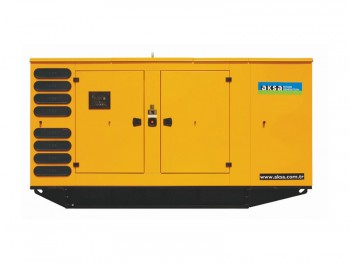

- CANOPY
- CANOPY: MS 60
- DRY WEIGHT kg ) ( kg ): 2985
- LENGTH ( mm ): 3960
- WIDTH ( mm ): 1356
- HEIGHT ( mm ): 2167
- TANK CAPACITY ( lt ) ( Lt ): 470
- STANDARD SPECIFICATIONS
- STANDARD SPECIFICATIONS:
- Water cooled, Diesel engine
- Radiator with mechanical fan
- Protective grille for rotating and hot parts
- Electric starter and charge alternator
- Starting battery (with lead acid) including rack and cables
- Engine coolant heater
- Base frame design incorporates an integral fuel tank and anti-vibration isolators
- Flexible fuel connection hoses
- Single bearing, class H alternator
- Industrial exhaust silencer and steel bellows supplied separately(for open sets)
- Static battery charger
- Manual for application and installation
- OPTIONAL EQUIPMENTS
- ENGINE:
- Fuel-Water Seperator Filter
- Oil heater
- ALTERNATOR:
- Anti-Condensation Heater
- Over sized alternator
- PMG excitation + AVR
- Main line circuit breaker
- CONTROL SYSTEM:
- Automatic synchronising and power control system ( multi gen-set Parallel )
- Transition synchronization with mains
- Remote annunciator panel
- Remote relay output
- Alarm output relays
- Remote communication with modem
- Earth fault, single set
- Charge Ammeter
- TRANSFER SWITCH:
- Three Pole Contactor
- Four Pole Contactor
- Three or four pole motor operated circuit breaker
- OTHER ACCESSORIES:
- Main Fuel Tank
- Automatic or manual fuel filling system
- Manual oil drain pump
- Low and high fuel level alarm
- Residential silencer
- Enclosure: weater protective or sound attenuated
- Duct adapter ( on radiator)
- Inlet and outlet motorised louvers
- Inlet and outlet acoustic baffles
- Trailer
- Tool kit for maintenance
- 1500/3000 hours maintenance kit
- Double wall chassis
